Double-Sided External Cantilever Racking

What is Double-Sided External Cantilever Racking?

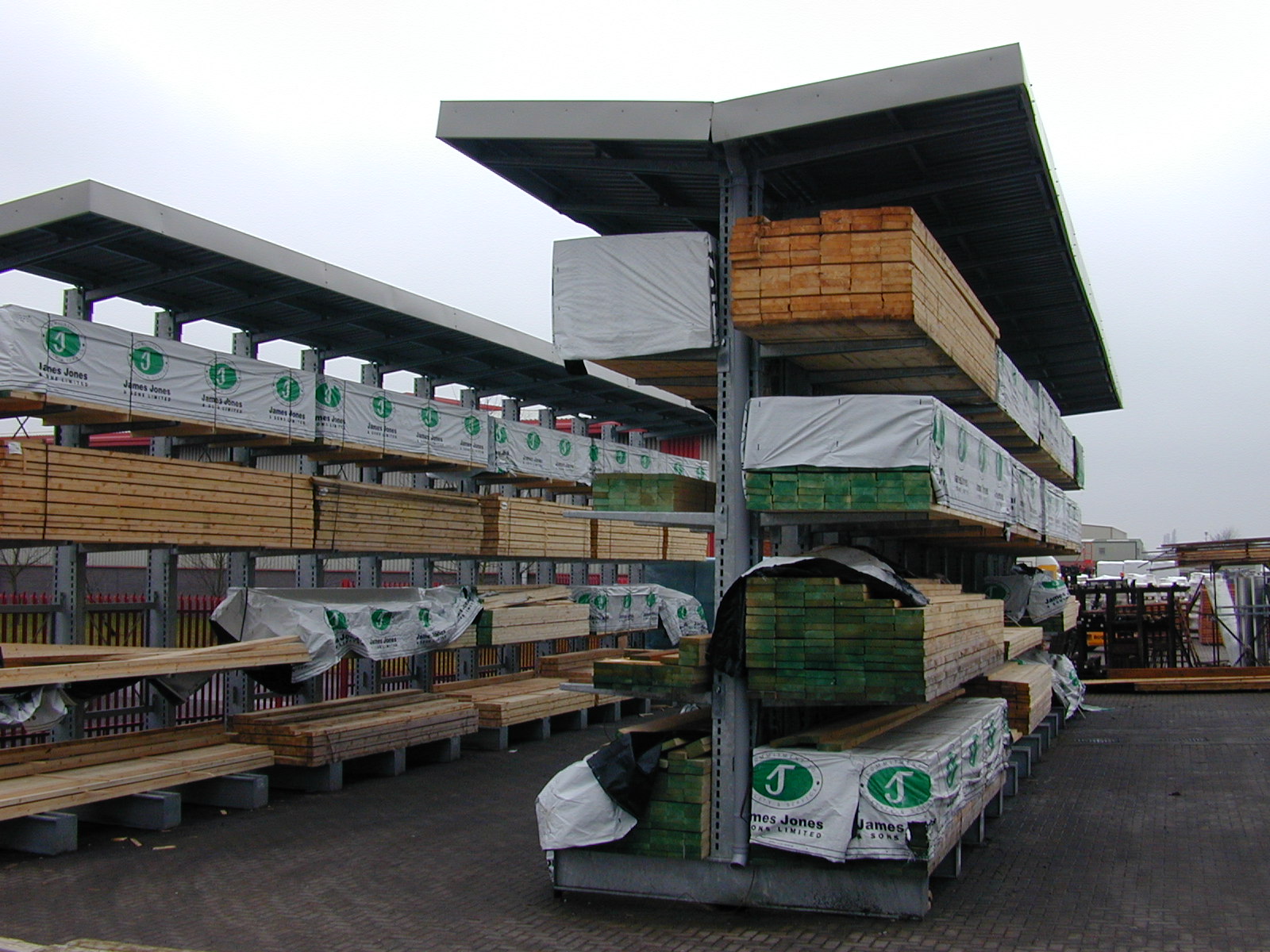

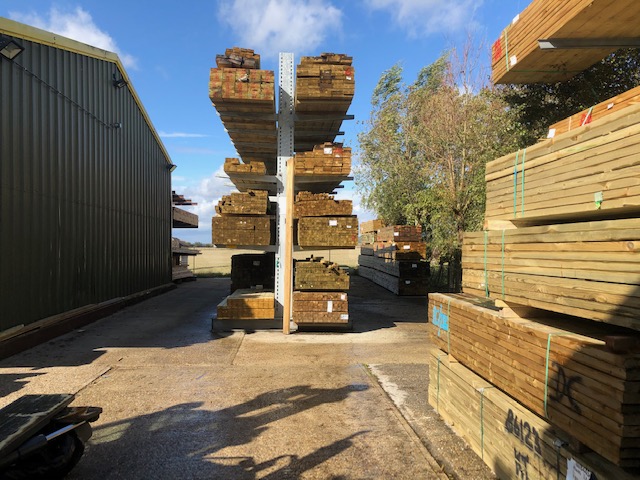

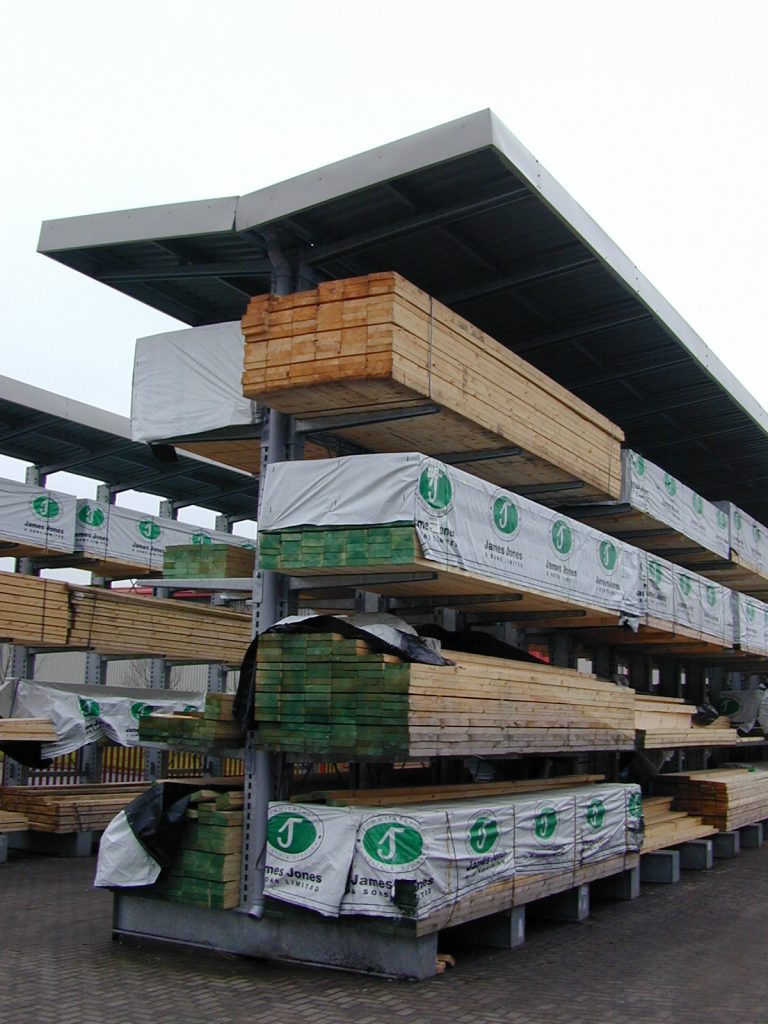

Double-sided external cantilever racking is a robust storage solution for businesses requiring high-capacity outdoor storage. With cantilever arms extending from both sides of a central column, this system doubles the storage potential compared to single-sided options. It’s ideal for storing long or bulky items like steel beams, timber, or piping in open yards or industrial sites.

At Cantilever Racking Company, our double-sided external racking is crafted with weather-resistant materials to ensure durability in challenging conditions, making it a top choice for construction, manufacturing, and supply industries.

Ideal Uses

Construction Yards: Organise steel, timber, and other materials.
Material Suppliers: Store pipes, bars, or sheets in bulk.
Industrial Sites: Manage large inventories in open spaces.

Benefits of Double-Sided External Cantilever Racking

Increased Storage: Double-sided design maximises capacity in limited outdoor spaces.
Weather Resilience: Built to withstand rain, snow, and sun exposure.
Efficient Access: Dual-sided access speeds up loading and unloading operations.
Versatility: Suitable for a wide range of industries and load types.

This system is perfect for businesses needing to store large volumes outdoors without sacrificing efficiency.

Not Sure Which Grade of Cantilever Racking Best Suits You?

We understand that selecting the right racking system can be a big decision—especially when balancing performance, cost, and long-term value. Whether you are running a growing workshop or managing large-scale warehousing operations, choosing between SpeedStock, Medium-Duty or Heavy-Duty Cantilever Racking depends on your current needs and future plans.

Key Features

Weatherproof Construction: Hot-dip galvanised steel resists the environmental impacts that cause the likes of rust and corrosion.
Double-Sided Access: Store items on both sides for maximum capacity.
Customisable Arms: Adjust arm heights and lengths to suit your inventory.
Heavy-Duty Design: Supports substantial loads without compromising stability.

Our systems are engineered to meet rigorous safety and performance standards.

Not Sure If Double-Sided Racking Is the Best Fit?

In certain layouts, single-sided cantilever racking may offer better wall placement and accessibility. See if it’s the smarter option for your setup.

Why Choose Us?

At Cantilever Racking Company, we ensure every system is built to your specifications, delivering value and performance you can trust. Our full range is manufactured in accordance with the SEMA (Storage Equipment Manufacturers Association) Code of Practice for The Design of Static Cantilever Racking and/or FEM 10-2-09 and/or BS5950 Part 5 and/or BS EN1993-1-3 (Eurocode 3).

Our expertise ensures that every double-sided external racking system is tailored to your needs, delivering durability and performance. We provide end-to-end support, from design to installation.

FAQs

1. What types of cantilever racking do you offer?

We specialise in a wide range of systems, including conventional, free path, narrow aisle, single sided and double sided (internal or external) cantilever racking.

2. What materials can be stored on these systems?

Our racks are designed for long, bulky or awkward items such as timber, steel/iron bars, pipes, panel products (MDF, plywood), furniture components, steel sheets, concrete lintels, plasterboard and more.

3. What are the technical specifications of your racking?

• Column height: standard up to 6m, bespoke up to 12m
• Arm lengths: 600 mm, 1 000 mm, 1 220mm (up to 2 400mm bespoke)
• Arm load capacity: 500kg @ 600mm up to 3000 kg @ 2 400mm
• Column pitches in 75mm increments
• Finish options: powder coated for internal use or hot dip galvanised for external use

4. Are your racking systems compliant with industry standards?

Yes — all systems are fully compliant with SEMA Code of Practice, FEM 10 2 09, BS5950 Part 5 and Eurocode 3 (BS EN1993 1 3)

5. Can I get help with delivery, installation, and maintenance?

Absolutely. We offer nationwide delivery and offer both flat packed delivery (for self-assembly) and professional installation via SEIRS-registered installers. Ongoing maintenance and inspection services are also available.

6. What is the difference between Premium and Entry-Level racking?

Premium systems are heavy-duty, durable with full compliance and ideal for industrial use (internal or external). Entry-Level systems provide solid performance at a lower cost, suitable for light to medium-duty environments.

7. Can I get a bespoke system tailored to my needs?

Yes — we offer custom designs, sizing and finishes to suit your requirements. Our team can provide CAD layouts, design consultation, bespoke colours, and tailored systems.

8. Which handling methods are compatible with your racking?

Our systems are suitable for guided-rail trucks, remote forklifts and overhead cranes.

9. Is your external racking weather-resistant and low maintenance?

Yes — our external (galvanised) systems are built to withstand rain, wind, UV exposure with minimal upkeep.

10. How do I arrange a consultation or quote?

Simply get in touch by phone (01543 275726) or email (enquiries@cantileverrackingcompany.co.uk) during our office hours (Mon–Fri, 9 am–5 pm). We offer free consultations and no-obligation quotes.
