Single-Sided Internal Cantilever Racking

The Need For Single-Sided Internal Cantilever Racking

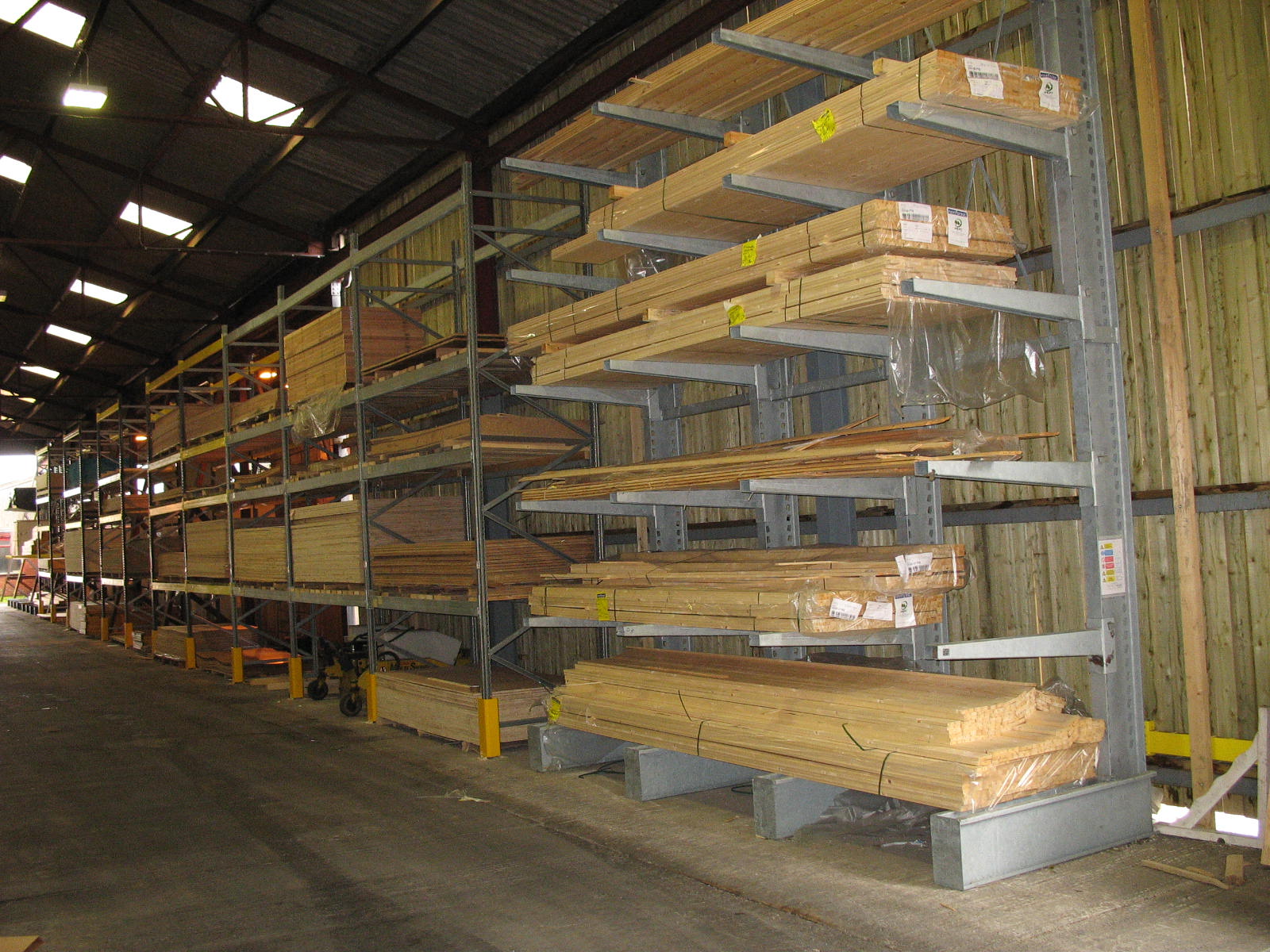

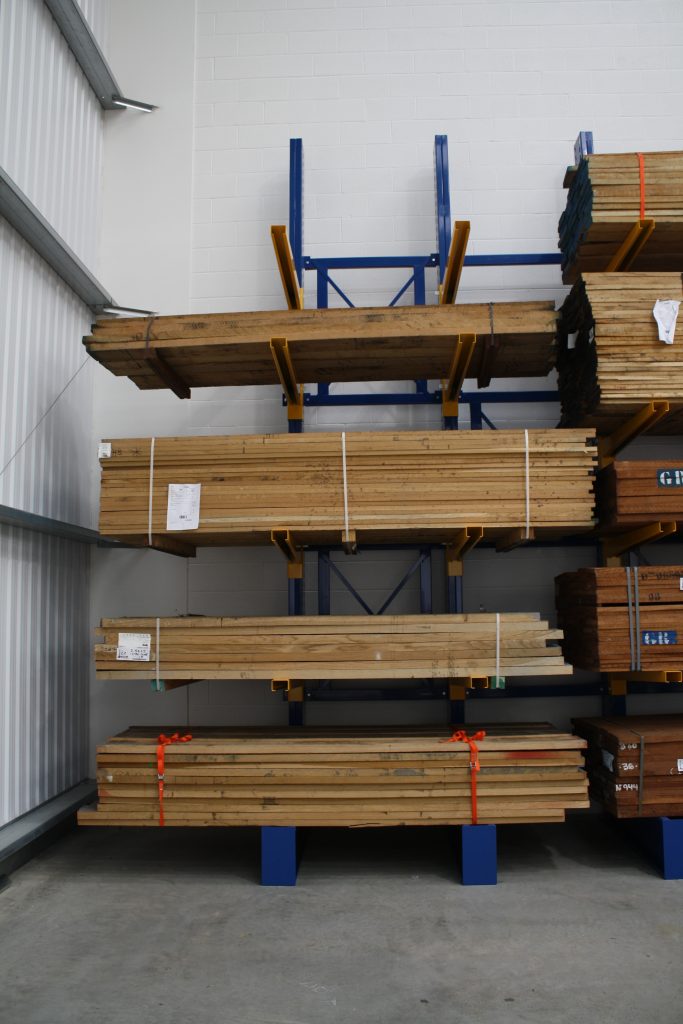

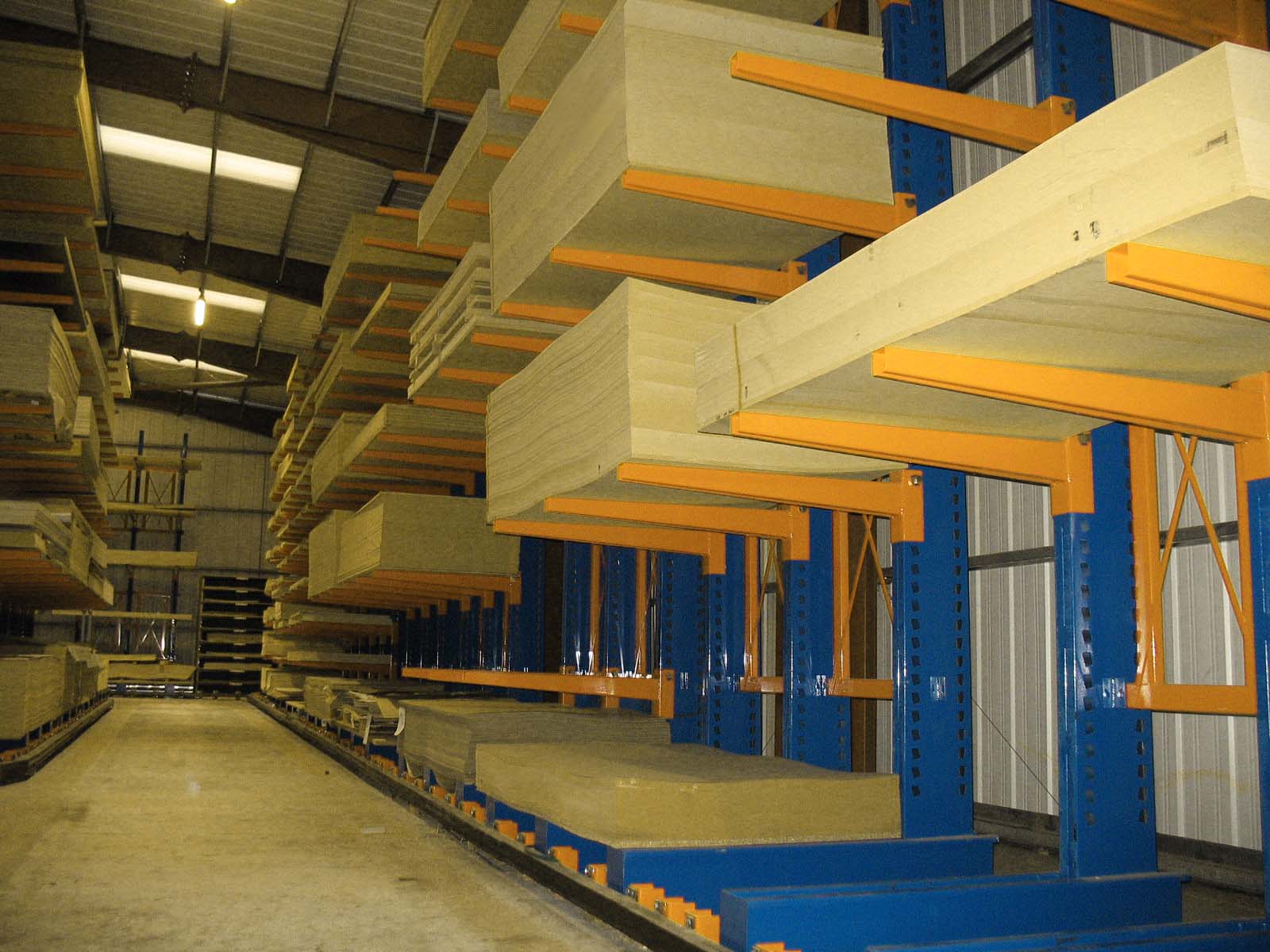

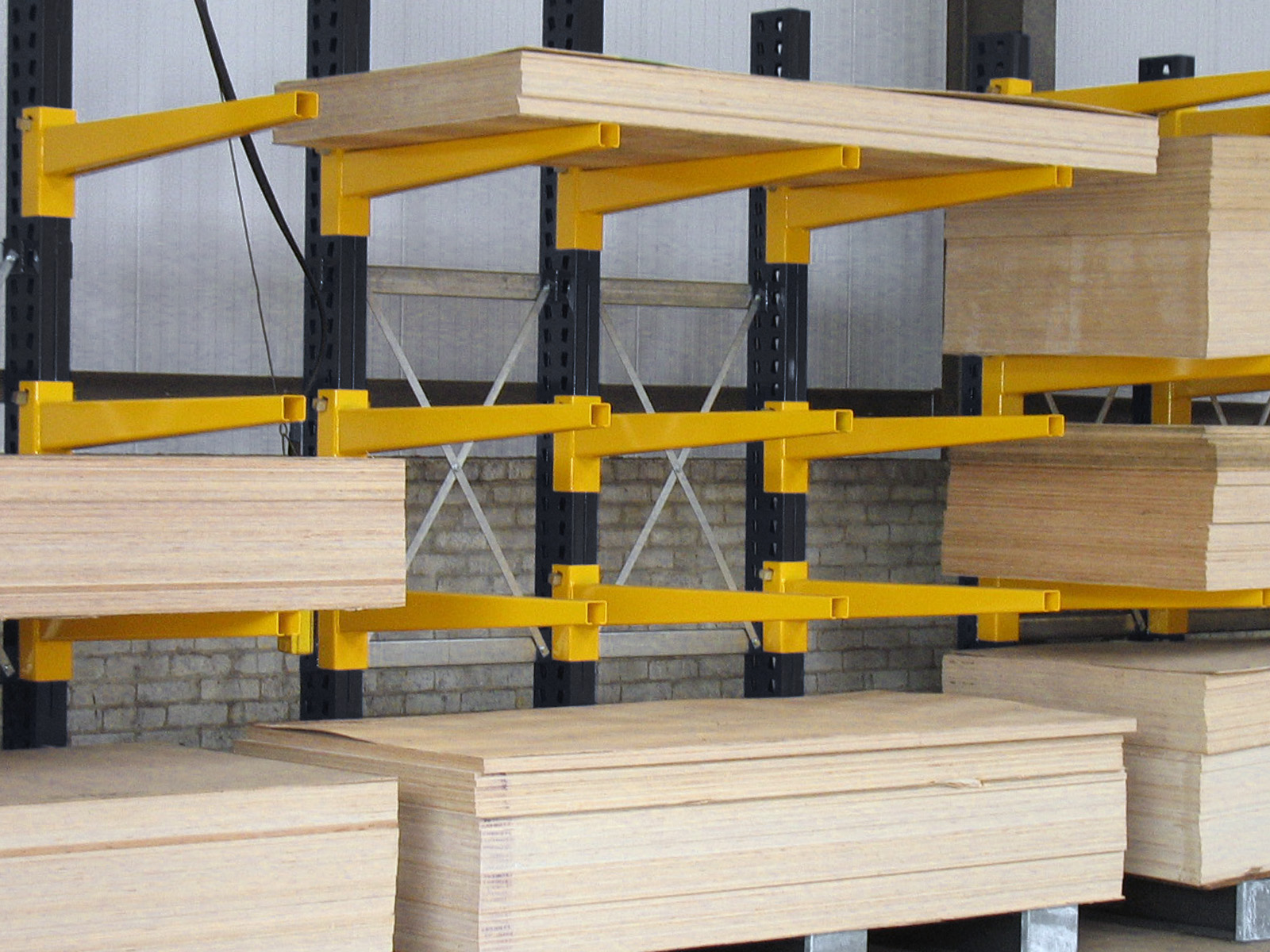

Single-sided internal cantilever racking is a space-efficient storage solution for indoor environments like warehouses or manufacturing facilities. Designed to be placed against a wall, it features cantilever arms extending from one side of a vertical column, perfect for storing long items such as lumber, metal bars, or furniture.

At Cantilever Racking Company, our storage systems are built for strength and flexibility, helping businesses maximise their indoor storage while maintaining easy access to inventory.

Applications

Warehouses: Store timber, pipes, or steel efficiently.
Retail: Organise furniture or carpets for easy access.
Manufacturing: Manage raw materials near production areas.

Benefits of Single-Sided Internal Cantilever Racking

Enhanced Accessibility: Open-front design simplifies loading and unloading.
Customisable: Tailor arm heights and load capacities to your needs.
Cost-Effective: Affordable solution for indoor storage challenges.
Improved Organisation: Keeps long items neatly arranged and accessible.

This system is ideal for businesses seeking efficient indoor storage without complexity.

Not Sure Which Grade of Cantilever Racking Best Suits You?

We understand that selecting the right racking system can be a big decision—especially when balancing performance, cost, and long-term value. Whether you are running a growing workshop or managing large-scale warehousing operations, choosing between SpeedStock, Medium-Duty or Heavy-Duty Cantilever Racking depends on your current needs and future plans.

Key Features

Space Optimisation: Fits seamlessly against walls to save floor space.
Adjustable Arms: Easily reconfigure to match changing inventory needs.
Robust Construction: High-grade steel ensures long-lasting performance.
Safe Design: Engineered for stability to protect staff and goods.

These features make this storage solution a practical choice for internal storage requirements.

Maximise Your Storage Efficiency

Already using single-sided cantilever racking? Discover if double-sided racking could optimise your available space and increase storage capacity.

Why Choose Us?

Our full range is manufactured in accordance with the SEMA (Storage Equipment Manufacturers Association) Code of Practice for The Design of Static Cantilever Racking and/or FEM 10-2-09 and/or BS5950 Part 5 and/or BS EN1993-1-3 (Eurocode 3).

We combine industry expertise with a customer-first approach to deliver tailored racking solutions. Our racking systems are designed for durability and ease of use. Ready to start your warehouse project? Contact us for a free quote or consultation.

FAQs

1. What types of cantilever racking do you offer?

We specialise in a wide range of systems, including conventional, free path, narrow aisle, single sided and double sided (internal or external) cantilever racking.

2. What materials can be stored on these systems?

Our racks are designed for long, bulky or awkward items such as timber, steel/iron bars, pipes, panel products (MDF, plywood), furniture components, steel sheets, concrete lintels, plasterboard and more.

3. What are the technical specifications of your racking?

• Column height: standard up to 6m, bespoke up to 12m
• Arm lengths: 600 mm, 1 000 mm, 1 220mm (up to 2 400mm bespoke)
• Arm load capacity: 500kg @ 600mm up to 3000 kg @ 2 400mm
• Column pitches in 75mm increments
• Finish options: powder coated for internal use or hot dip galvanised for external use

4. Are your racking systems compliant with industry standards?

Yes — all systems are fully compliant with SEMA Code of Practice, FEM 10 2 09, BS5950 Part 5 and Eurocode 3 (BS EN1993 1 3)

5. Can I get help with delivery, installation, and maintenance?

Absolutely. We offer nationwide delivery and offer both flat packed delivery (for self-assembly) and professional installation via SEIRS-registered installers. Ongoing maintenance and inspection services are also available.

6. What is the difference between Premium and Entry-Level racking?

Premium systems are heavy-duty, durable with full compliance and ideal for industrial use (internal or external). Entry-Level systems provide solid performance at a lower cost, suitable for light to medium-duty environments.

7. Can I get a bespoke system tailored to my needs?

Yes — we offer custom designs, sizing and finishes to suit your requirements. Our team can provide CAD layouts, design consultation, bespoke colours, and tailored systems.

8. Which handling methods are compatible with your racking?

Our systems are suitable for guided-rail trucks, remote forklifts and overhead cranes.

9. Is your external racking weather-resistant and low maintenance?

Yes — our external (galvanised) systems are built to withstand rain, wind, UV exposure with minimal upkeep.

10. How do I arrange a consultation or quote?

Simply get in touch by phone (01543 275726) or email (enquiries@cantileverrackingcompany.co.uk) during our office hours (Mon–Fri, 9 am–5 pm). We offer free consultations and no-obligation quotes.
